☸️ Introduction

Kubernetes #

Finally we have the basis in place for starting to talk about what we are here for Kubernetes. In this first chapter we will explain some of the primitives and the patterns of how Kubernetes works.

I might use k8s as abbreviation of Kubernetes.

As briefly mentioned earlier it helps to think of Kubernetes as a container orchestrator. It’s main responsibility is to manage and deploy containers across a cluster of servers. As a user the main way of interacting with Kubernetes is by supplying it with declarative specifications of what containers to deploy along with information about how they should be deployed.

As mentioned the Kubernetes APIs are declarative. This means that when we give Kubernetes one of these specifications, it might take some time for it to take effect. Some resources are quickly processed while others might take a while to reach the desired state.

Desired state is an important concept when working with Kubernetes. When we give Kubernetes a specification, it is the responsibility of Kubernetes to go from the actual state to the desired state. This process is often referred to as reconciliation. Whenever your hear the word reconciliation, think “actual state to desired state”.

We will now go through a few of the most commonly use APIs in Kubernetes. We will use some of these directly, while others will be used indirectly (more on this later).

Pod #

The Pod is the most important resource in Kubernetes. A Pod is one or more containers which are living as a single inseparable unit. The containers share localhost, meaning that their exposed ports cannot overlap.

Here is a simple specification of a Pod running the nginx container.

apiVersion: v1
kind: Pod
metadata:
  name: nginx
spec:
  containers:
  - name: nginx
    image: nginx:1.14.2
    ports:
    - containerPort: 80

Deployment #

Pod’s in themselves are not very useful instead we usually use the Deployment resource which enables us to run multiple instances of a Pod.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.14.2
        ports:
        - containerPort: 80

For now lets ignore everything above the spec: line. First we have a line that says we would like to have 3 replicas of our pod. In other words our desired state is 3 pods.

Then we have a selector. Kubernetes uses the selector in order to determine if it has reached the desired state. Kubernetes will check if we have 3 pods with the label app: nginx, where their pod specification matches the template. If that isn’t the case, Kubernetes has work to do in order to make the actual state become the desired state.

If we look at the template field of the Deployment specification, we might notice that it looks very similar to the Pod specification. This is because the Deployment has a Pod template, which it uses to create the Pods.

The above explanation is a bit dumbed down. The deployment actually doesn’t create pods directly instead it uses another resource called a ReplicaSet if you want a deeper understanding of how Deployment’s work. Read the documentation

Service #

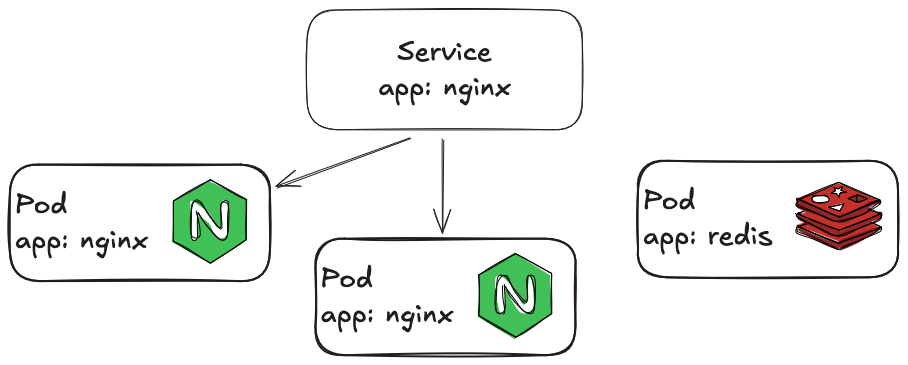

By now we are able to create multiple instance of a Pod by using the Deployment resource, but we have no way of sending a request to our deployment. This is where the Service comes into play. A Service finds a set of pods by a set of labels and assigns a cluster-internal DNS name.

apiVersion: v1
kind: Service
metadata:
  name: nginx
spec:
  selector:
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

In almost any modern IT architecture, multiple applications need to communicate with each other. In Kubernetes Services enable this by providing cluster local DNS names that applications can use to reach each other.

Ingress #

Most systems need to be able to accept requests that originate outside of the cluster. For instance, a website wouldn’t provide much value if it couldn’t be reached from networks outside the k8s cluster. This is where the Ingress resource comes into play. Where the Service mapped a cluster local DNS name to set of Pods, the Ingress resource maps a cluster external DNS name to a Service.

The Ingress will often also have responsibility of doing TLS termination. In order to do this an Ingress will need access to a Secret resource (see section about secrets and configmaps for more information about this). The Secret resource which is referenced by name holds the certificate and private key used for TLS.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx
spec:
  tls:
  - hosts:
      - foo.bar.com
    secretName: foo-bar-com-tls
  rules:
  - host: foo.bar.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: nginx
            port:
              number: 80

Secrets and ConfigMaps #

We already saw one use of the Secret resource in the Ingress section. Another even more common use of these resources is to provide Pods configuration values. I have grouped these two resources together as they are equivalent in functionality and very similar in their APIs.

The main reason we have two different resources is to be able to create RBAC rules which give granular access to each resource. It is common practice that developers don’t have read access to Secrets but only ConfigMaps.

There are two main ways of using these resources to provide configuration for Pods

  • Their values can be injected into Pods as environment variables
  • Their values can be mounted into Pods as files on the file system.

For some reason it was decided that the data of secrets needs to be base64 encoded, while the data of configmaps is plain text. There has since then been added APIs in both of the resources, where you can do encoded or string data.

For instance the following secret and configmap holds the same data:

apiVersion: v1
kind: Secret
metadata:
  name: my-secret
data:
  MY_KEY: aGVsbG8gd29ybGQ=

---

apiVersion: v1
kind: ConfigMap
metadata:
  name: my-configmap
data:
  MY_KEY: hello world

Please not that the secret isn’t encrypted the value is merely base64 encoded.

When defining a workload we will usually use the Deployment resource. As mentioned earlier, the Deployment resource has a Pod template which is used to generate the Pods that make out the Deployment. In this template we can chose to reference a ConfigMap or a Secret, in order to use it’s contents as files or environment variables. See the next sections to see how this works.

Mounting a configuration file #

Our application might have a configuration file can be used to configure how the application acts on runtime. In order to provide our application with a configuration file we will first need to store it in a configmap.

apiVersion: v1
kind: ConfigMap
metadata:
  name: my-configmap
data:
  config.yaml: |
    mode: development
    otherConfigParam: hello

With the above configmap in place we can mount it to a folder like in the container like this:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: my-app
        image: my-app
        volumeMounts:
        - name: config
          mountPath: /etc/my-app
  volumes:
  - name: config
    configMap:
      name: my-configmap

Every key in the configmap becomes a file inside of the container with the contents of the value. In this case we would have a file at /etc/my-app/config.yaml with the content

mode: development
otherConfigParam: hello

The application can then read this file when it starts and configure it’s runtime behavior according to what the config file specifies.

Setting environment variables #

The other option for consuming Secrets and ConfigMaps is to use them as the basis of environment variables.

Say our application needs access to an API which requires it to present an API key. In order to provide this API key to our application we first create a secret which will hold it.

apiVersion: v1
kind: Secret
metadata:
  name: my-secret
data:
  API_KEY: bXkgdmVyeSBzZWNyZXQgQVBJIGtleQ==

With the above secret in place we can tell our pods to use the secret as environment variables.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  labels:
    app: my-app
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: my-app
        image: my-app
        envFrom:
        - secretRef:
            name: my-secret

This will run the container with the environment variable API_KEY set to what is found in the secret.

Exercises #

Reading the value of a secret #

As mentioned earlier, the values in a Secret are not encrypted but merely base64 encoded. With this knowledge, what is the API key which was used in the section about how to set environment variables?
